Name: Checkpoint ALR 4
SKU: 400
Price: 2115.00 EUR
Availability: OutOfStock

Description

Checkpoint ALR 4 is an aluminium gravel bike that offers an incredible amount of capability for the price. It’s built for the rigours of gravel and dirt roads, but it’s also right at home on morning commutes and centuries. This bike knows no boundaries, which makes it the ideal gateway to adventure on any road or path.

A stout aluminium frame with rack and mudguard mounts, a vibration-absorbing carbon fork, a 2×10 Shimano GRX drive train with lower gears for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power and wide 700x40c gravel tyres for added stability and traction.

Bring it on, gravel! Checkpoint ALR 4 is a high-value gateway to a world of adventure. It’s rugged, fast, comfortable and has an amazing amount of tech for its price. Though it’s made to stand up to the rigours of gravel roads, the frame geometry and accessory mounts make it a great choice for road rides and commutes too.

Additional information

Size	49, 52, 54, 56, 58, 61
Color	Dark Aquatic, Rage Red

Technical Information

Frameset
Frame	300 Series Alpha Aluminium, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and mudguard mounts, flat-mount disc, Stranglehold dropouts, 142x12 mm thru axle
Fork	Checkpoint carbon, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Front Hub	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Rear Hub	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rim	Bontrager Tubeless Ready, 28-hole, 17 mm width, Presta valve
Spokes	14 g stainless steel
Tire	Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c
Drivetrain
Shifter	Shimano GRX RX400, 10-speed
Front derailleur	Shimano GRX RX400, braze-on
Rear derailleur	Shimano GRX RX400, long cage, 36T max cog
Crank	Size: 49
	Shimano GRX RX600, 46/30, 165 mm length
	Size: 52
	Shimano GRX RX600, 46/30, 170 mm length
	Size: 54, 56
	Shimano GRX RX600, 46/30, 172.5 mm length
	Size: 58, 61
	Shimano GRX RX600, 46/30, 175 mm length
Bottom Bracket	Shimano RS500, 92 mm, PressFit
Cassette	Shimano Tiagra HG500, 11-34, 10-speed
Chain	KMC X10
Pedal	Wellgo M141, resin body, alloy cage
Components
Saddle	Bontrager Montrose Comp, steel rails, 138 mm width
Seatpost	Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Handlebar	Size: 49
	Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width
	Size: 52
	Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width
	Size: 54, 56
	Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width
	Size: 58, 61
	Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
Grips	Bontrager Satellite, IsoZone Plus, lock-on, ergonomic
*Stem	Size: 49
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 61
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Head set	FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Accessories
Brake	Shimano RX400 hydraulic disc
Brake rotor	Shimano SM-RT70, 160 mm, CenterLock
Weight
Weight	56 - 10.26 kg / 22.62 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Size Guide

	49	52	54	56	58	61
Rider Height	156.0 - 16.0 cm	163.0 - 168.0 cm	168.0 - 174.0 cm	174.0 - 180.0 cm	180.0 - 185.0 cm	185.0 - 191.0 cm
	5'1.4" - 5'3.8"	5'4.2" - 5'6.1"	5'6.1" - 5'8.5"	5'8.5" - 5'10.9"	5'10.9" - 6'0.8"	6'0.8" - 6'3.2"

Inseam	74.0 - 77.0 cm	76.0 - 79.0 cm	78.0 - 82.0 cm	81.0 - 85.0 cm	84.0 - 87.0 cm	86.0 - 90.0 cm
	29.1" - 30.3"	29.9" - 31.1"	30.7" - 32.3"	31.9" - 33.5"	33.1" - 34.3"	33.9" - 35.4"

Frame size letter	49 cm	52 cm	54 cm	56 cm	58 cm	61 cm
A — Seat tube	49.0	52.0	54.0	56.0	56.0	56.0
B — Seat tube angle	75.0°	74.0°	73.5°	73.0°	73.0°	73.0°
C — Head tube length	9.0	10.7	12.6	14.5	17.1	20.0
D — Head angle	71.4°	71.6°	71.8°	72.2°	72.3°	72.6°
E — Effective top tube	51.5	53.6	55.1	56.6	57.7	59.2
G — Bottom bracket drop	7.8	7.8	7.6	7.6	7.4	7.4
H — Chainstay length	42.5	42.5	42.5	42.5	42.5	42.5
I — Offset	4.9	4.9	4.9	4.9	4.9	4.9
J — Trail	6.6	6.5	6.4	6.1	6.1	5.9
K — Wheelbase	99.5	100.5	101.4	102.0	103.2	104.4
L — Standover	74.9	77.0	78.9	80.8	82.9	85.8
M — Frame reach	37.3	37.9	38.3	38.7	39.1	39.7
N — Frame stack	53.2	54.9	56.7	58.6	60.9	63.8

Reviews

There are no reviews yet.

Be the first to review “Checkpoint ALR 4”

Checkpoint ALR 4

Description

Additional information

Technical Information

Size Guide

Reviews

Related products

Domane AL2

Trek Dual Sport 2 Womens

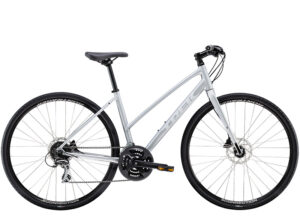

Trek FX2 Disc
